Silicon carbide condenser

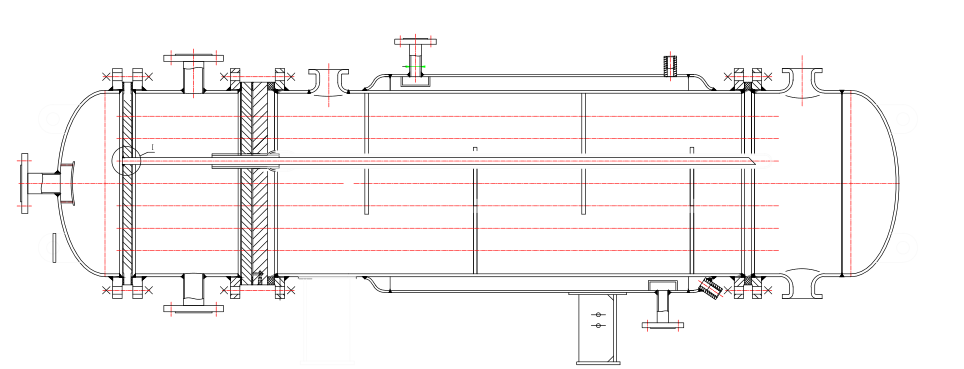

SiC Material Shell & tube Type Heat Exchanger

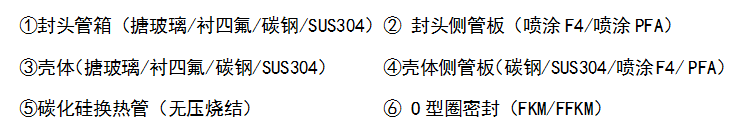

Silicon carbide heat exchangers can be specially designed for a variety of applications. The appropriate components will be assembled according to the characteristics of the specific medium. According to the anti-corrosion requirements, the shell materials can be carbon steel, stainless steel, PTFE lining, glass lining, corrosion-resistant precious metal, alloy materials, etc.
Silicon carbide tubular heat exchanger is an ideal choice for heating, cooling and condensing chemical corrosive process medium with heat exchange tube made of corrosion resistant silicon carbide. Typical applications include bromine, sulfuric acid, hydrofluoric acid, nitric acid, hydrochloric acid and other acids; bases; halogenated compounds; salt solutions and organic compounds.
• Before installation, test each heat exchange tube;
• The shell diameter of heat exchanger ranges from DN 100 to DN600;
• The standard length of heat exchange tube is 1000 to 3000mm;
• The heat exchange area is 1 to 60 square meters;
• The diameter of heat exchange tube is 14mm and 19mm;
• Horizontal or vertical installation;
• Suitable temperature range - 19 ℃ to 100 ℃;
• The applicable pressure range is - 0.1MPa to 0.3MPa;

PRODUCT ADVANTAGES

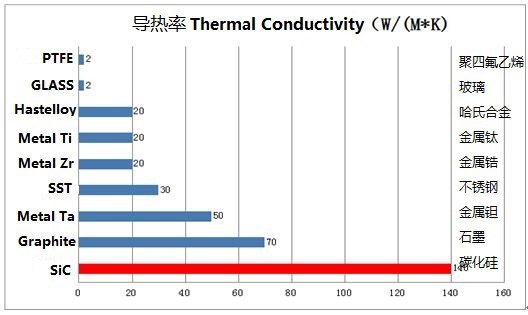

1、 High thermal conductivity - the thermal conductivity of silicon carbide is much higher than that of other corrosion-resistant materials. The heat exchanger is used as the heat transfer element in the same heat transfer size, when the heat transfer area is smaller.

2、 Excellent corrosion resistance

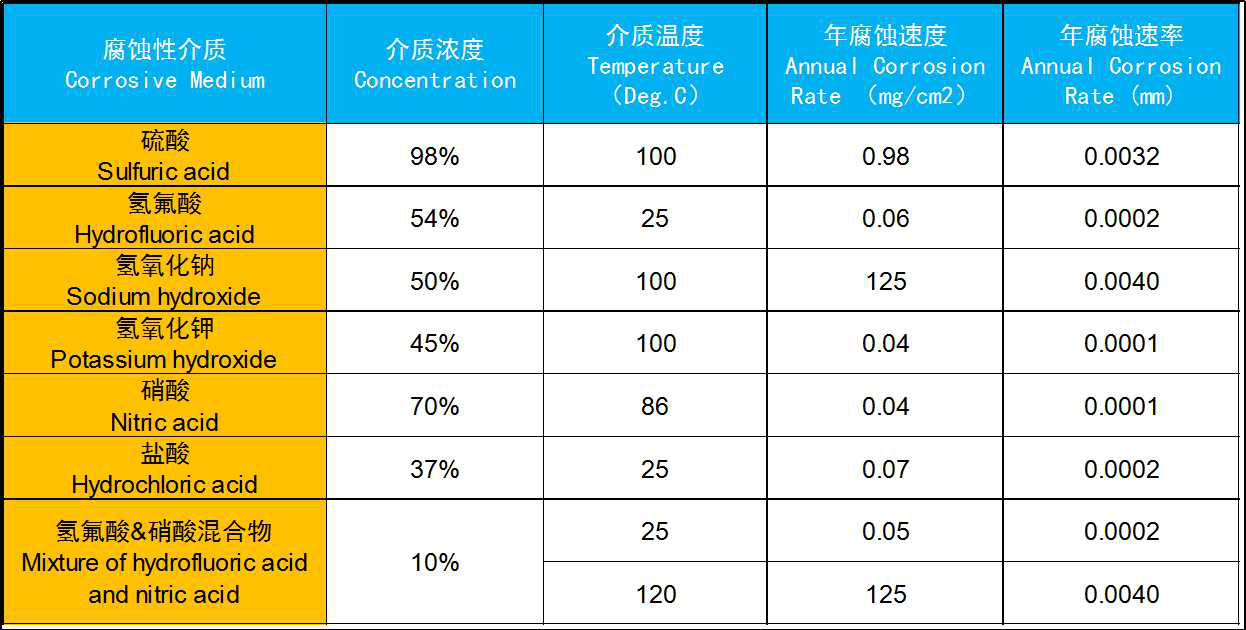

Silicon carbide material has high corrosion resistance, oxidation resistance and corrosion resistance. It is suitable for high concentration sulfuric acid, nitric acid, phosphoric acid, mixed acid, strong base, oxidant, etc. It is the only anti-corrosion ceramic material with resistance to hydrofluoric acid.

3、 Excellent thermal&mechanical properties

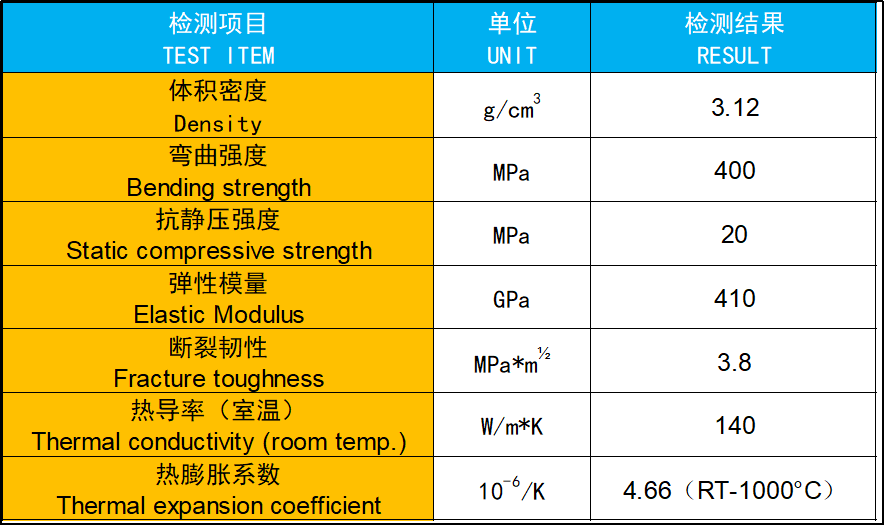

SiC is a hexagonal crystal with specific gravity of 3.20-3.25 and microhardness of 2840-3320 kg / mm2. It has the characteristics of stable chemical property, high thermal conductivity, small thermal expansion coefficient, high hardness, high strength, light weight and long service life. It has excellent wear resistance and impermeability under extreme high temperature and high pressure. Silicon carbide tube allows the medium to pass through at high speed.
